Product Details:
Payment & Shipping Terms:
|
| Name: | Escalator | Speed: | 0.5m/s |
|---|---|---|---|
| Travelling Height: | 3000~6000mm | Inclination: | 30/35° |
| Used: | Indoor/Outdoor | Warranty: | 12 Months |
| Usage: | Shopping Mall | Product Name: | Escalator |
| Model: | Shopping Mall Escalator | Type: | Shopping Mall Escalator |
| Product: | Shopping Mall Escalator | Drive Type: | VVVF |
| Highlight: | 1000 Step Width Indoor Escalator,Vvvf Shopping Mall Escalator,30 Degree Shopping Mall Indoor Escalator |
||

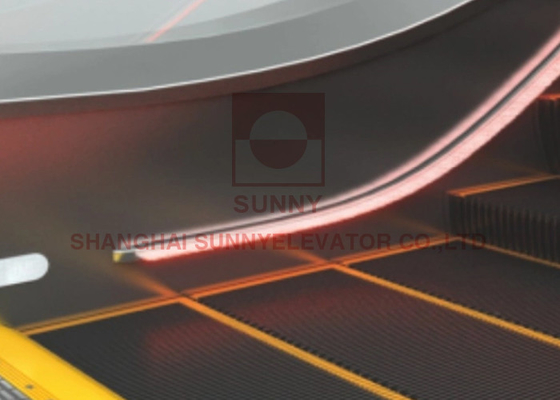

Vvvf Auto Start And Stop 30degree 1000 Step Width Indoor Escalator For Shopping Mal
An Indoor Escalator is a mechanized vertical transportation system designed to move people efficiently between different floors in indoor environments such as shopping malls, airports, office buildings, and transit stations. It consists of a continuous loop of steps powered by an electric motor and drive system, which move in a synchronized manner to transport passengers smoothly and safely.

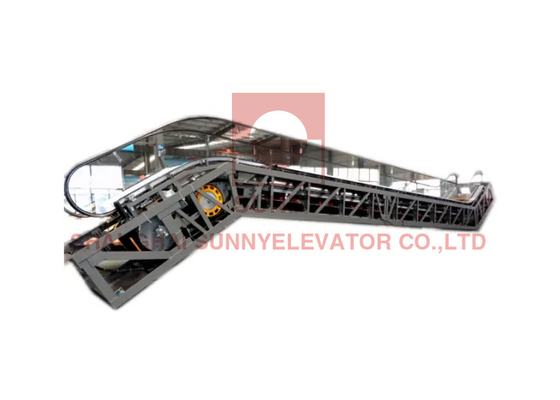

Indoor escalators are engineered for durability and reliability, often constructed with high-strength materials like steel and aluminum to withstand heavy daily use. The steps are designed with non-slip surfaces to ensure safety, while the handrails move at the same speed as the steps, providing stability for passengers. Modern escalators also feature advanced safety mechanisms, including sensors to detect obstructions, emergency stop buttons, and skirt brushes to prevent clothing or objects from getting caught.
Energy efficiency is a key focus in contemporary designs, with features like variable speed controls and standby modes to reduce power consumption during low-traffic periods. Indoor escalators are often integrated with building management systems for optimized operation and maintenance.
Aesthetically, indoor escalators are designed to complement the architecture of the space, with options for custom finishes, lighting, and glass balustrades. By providing a convenient, efficient, and safe means of vertical transportation, indoor escalators enhance the functionality and accessibility of multi-level buildings, improving the overall user experience.
Specification of the indoor&outdoor escalator
| Type Model |
Travelling height mm | Net Weight (two set)KN |
Support (two set) | Motor power KW |
Dimension | |||||||
| R1 KN |
R2 KN |
h | i | |||||||||
| SN-ES-302(800) (4800 persons/h) Speed 0.5m/s |
3000 | 118 | 104 | 94 | 5.5 | 2080 | 10900 | |||||
| 3500 | 126 | 112 | 100 | 2110 | 11890 | |||||||
| 4000 | 134 | 120 | 108 | 2140 | 12880 | |||||||
| 4500 | 142 | 128 | 114 | 8 | 2160 | 13870 | ||||||
| 5000 | 148 | 136 | 120 | 2170 | 14860 | |||||||
| 5500 | 164 | 148 | 132 | 2190 | 15860 | |||||||
| 6000 | 172 | 156 | 138 | 11 | 2200 | 16850 | ||||||
| SN-ES-302(1000) (4800 persons/h) Speed 0.5m/s |
3000 | 126 | 118 | 106 | 5.5 | 2080 | 10900 | |||||
| 3500 | 134 | 128 | 114 | 8 | 2110 | 11890 | ||||||
| 4000 | 142 | 136 | 122 | 2140 | 12880 | |||||||
| 4500 | 150 | 146 | 130 | 2160 | 13870 | |||||||
| 5000 | 166 | 158 | 142 | 11 | 2170 | 14860 | ||||||
| 5500 | 174 | 168 | 150 | 2190 | 15860 | |||||||
| 6000 | 184 | 176 | 158 | 2200 | 16850 | |||||||
| 1000 | 1000 | 1238 | 1660 | 3500 | ||||||||
| 800 | 800 | 1038 | 1460 | 3100 | ||||||||
| Step width mm | A | B | C | D | ||||||||
| Center support H3(L/2-2600)*tg30°-(897/cos30°+300) | ||||||||||||
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
